Tyrolsport Hatch Brace MK5/6
Hover over image to zoom

More images

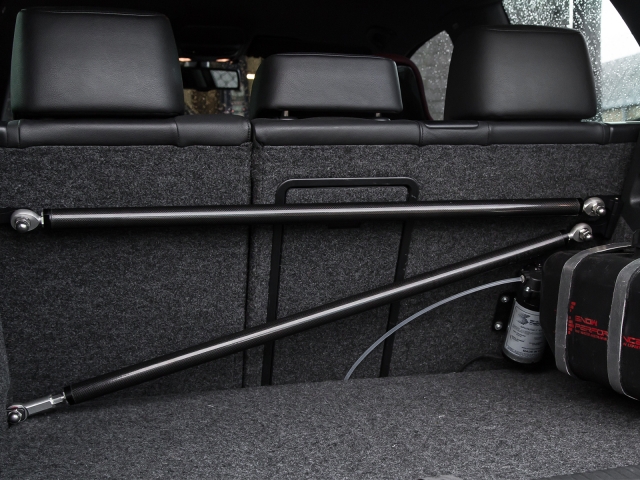

Tyrolsport Hatch Brace MK5/6

Product ID : TSMSHB
Manufacturer: Tyrolsport
Price: $399.00

Purchase

Description

The VW/Audi Mk5/6 chassis, like other hatchbacks prior, experience a large amount of chassis flex during cornering. This chassis flex negatively affects vehicle handling. The Tyrolsport Hatch Brace solves this issue by locking the hatchback hard points together with a revolutionary system of billet aluminum clamps and specifically designed rigid bars.

The Hatch Brace uses side-specific mounts precision-machined from 6061 T6 billet aluminum, with a sleek design that clamps around the rear seat back latch. These special mounts require absolutely no drilling of the vehicle chassis, and do not interfere with rear seat movement or locking. The full interior is maintained even with the installation of the Tyrolsport Hatch Brace, with only minimal trimming required to the rear quarter plastic trim. These features are unique to the marketplace.

Installation is a breeze, requires little technical experience, and can be easily accomplished in less than 30 minutes by an enthusiast. The bar can be removed in less than five minutes if a user needs to utilize the full space of their hatch, another feature unique to the marketplace.

The hatch brace comes in three forms; Stage 1, Stage 2 and Stage 3. Stage1 & 2 is for street enthusiasts who want better handling and chassis stiffness. Stage 2 adds an additional triangulating bar for increased stiffness. Stage 3 adds an addition bracket which allows for a third bar to run parrallel to the top bar to achieve maximum stiffness. Stage 3 is designed for enthusiasts who may AutoX or attend HPDE events.

All Time Trial vehicles should check with ruling before purchase

Within the two forms, Aluminum polished or Black Wrinkle Coat can be chosen. The Aluminum bars are made from high grade 6061 T6 swaged aluminum tubing. Both bars are connected to the billet clamp mounts with PTFE lined 7075 Aluminum spherical bearing rod ends and stainless steel fasteners. All of the materials used in the hatch brace are the best available. Both options excel at stiffening the chassis.

Specs

Side-specific, black anodized precision-machined 6061-T6 aluminum hatch brace mounts

High strength custom molded full Carbon Fiber Bar, with threaded 6061 aluminum end caps

Custom 7075 Aluminum, PTFE lined, spherical bearing rod ends

18-8 Stainless steel fasteners

All brace installation hardware and ball hex drive T-handle included

30 minute installation – no drilling required

Less than 3 lbs

100% USA researched, designed, and manufactured

Available in multiple combinations for added rigidity

Polished Aluminum and Black Wrinkle Powder Availible

Stage 1 with bar, clamps and installation hardware

Stage 2 adds bottom bracket to triangulate bar

Stage 3 adds an addition bottom bracket so you can run a third bar parrallel to the top bar

Installation Instruction Video

Detailed write up by HYDE16

Speedhunters review

Product Reviews

Login or Register to write a review.
Reviewed by ponk
08/07/2018 - 03:57:09 PM
ponk from across the pond
beautiful cnc components, shame to hide the brackets, the main bar linking the struts and high quality rod ends look gorgeous and very motorsport, every thing smack's of the highest quality, and once installed, it really does not disappoint!!
car feels so much more integrated, with tighter turn in because the rear sway bar/shocks are not having to deal with flex in the chassis. less scuttle shake on unruly roads, instils more confidence on taking speed into a corner and makes the car quieter, a bonus i wasn't expecting.
installed on a uk based skoda octavia estate 2010, same platform as golf mk5, really can't recommend this highly enough.
Greg kept me up to date on every stage of production schedules and delivery to this side of the pond, and it was well worth the wait.
very, very happy!




Reviewed by ponk
08/07/2018 - 03:57:09 PM
ponk from across the pond
beautiful cnc components, shame to hide the brackets, the main bar linking the struts and high quality rod ends look gorgeous and very motorsport, every thing smack's of the highest quality, and once installed, it really does not disappoint!!
car feels so much more integrated, with tighter turn in because the rear sway bar/shocks are not having to deal with flex in the chassis. less scuttle shake on unruly roads, instils more confidence on taking speed into a corner and makes the car quieter, a bonus i wasn't expecting.
installed on a uk based skoda octavia estate 2010, same platform as golf mk5, really can't recommend this highly enough.
Greg kept me up to date on every stage of production schedules and delivery to this side of the pond, and it was well worth the wait.
very, very happy!




Reviewed by ponk
08/07/2018 - 03:57:09 PM
ponk from across the pond
beautiful cnc components, shame to hide the brackets, the main bar linking the struts and high quality rod ends look gorgeous and very motorsport, every thing smack's of the highest quality, and once installed, it really does not disappoint!!
car feels so much more integrated, with tighter turn in because the rear sway bar/shocks are not having to deal with flex in the chassis. less scuttle shake on unruly roads, instils more confidence on taking speed into a corner and makes the car quieter, a bonus i wasn't expecting.
installed on a uk based skoda octavia estate 2010, same platform as golf mk5, really can't recommend this highly enough.
Greg kept me up to date on every stage of production schedules and delivery to this side of the pond, and it was well worth the wait.
very, very happy!




Reviewed by hgbrown0509
10/15/2016 - 05:40:33 PM
Stage 1 rear hatch brace
Installed the stage 1 aluminum hatch brace on my Mk6 GTI. The hardware is high quality, something you'd normally expect from them. Installation took a little longer for me as I had to do a little extra trimming to the driver side trim to get the bracket lined up better. Other than that everything went smoothly. Took it for a test drive and instantly could tell the difference it makes. The rear feels much tighter and less flimsy. It helps keep the rear planted through the turns as well. This compliments the rear subframe deadest collars very well in stiffening up the rear of the car!
